Leak-Tight Double Block & Bleed Isolation
Trusted By
The BISEP® provided reliable, accurate, and high-integrity pipeline isolation. In addition, it reduced manpower and job duration, saving two months of the schedule when compared to performing a shutdown, and provided an effective double block and bleed isolation.
Awadh O. Oadah
Pipeline Projects Department
Aramco
About STATS Group
We are market leaders in the supply of pressurised pipeline isolation, hot tapping and line stopping services to the global energy industry.
We provide high quality, fit-for-purpose solutions to ensure that the pipework and pipeline infrastructure of our clients meet the technical, safety and environmental standards required.
Our extensive Middle East network includes operational facilities in Abu Dhabi, Dammam, Doha, and Muscat. Our operational facility include extensive workshop and yard areas to support the assembly, test and maintenance of industry leading equipment. Local design and project engineering teams ensure dedicated project support.
UAE – Abu Dhabi
STATS (UK) Limited - Abu Dhabi
Plot No. 20
M35, Mussafah, Sanayyah
Abu Dhabi, United Arab Emirates
Tel: +971 2204 9999
Vinu Vijayan
Tel: +971 5516 61243
Qatar – Doha
STATS Pipeline Services LLC
c/o Marina Marine, Building 452, Street 263
Zone 90, Um Al Houl Free Zone
Mesaieed, PO Box 22079, Doha, Qatar
Tel: +974 4437 5019
Vikas Shangari
Tel: +974 5547 9393
Saudi Arabia - Dammam
STATS Ltd. Co for Oil Services
Industrial City 2
Dammam, PO Box 72047
Kingdom of Saudi Arabia
Mohammed Alfaqih محمد الفقيه
Tel: +966 59 972 3349
Ahzam Akhlaq
Tel: +966 57 317 7190
Sultanate of Oman
STATS (UK) Ltd. Oman
Office 303, 3rd Floor, Building 642
Al Anwaar Street, Al Azaiba North
Muscat, Sultanate of Oman
Abdullah Al-Riyami
Tel: +96893935964
Kuwait - Agent
UOGE International General Trading & Contracting Co.
Office 9, 2nd floor, Building 22
(Al Raie Super Market Building)
Street 58, Fahaheel, Block 11
Land Mark: Near Ajail Mall
Tel: +965 6037 6737
Mr. Lakshmi Narasaiah
Tel: +965 6664 9708
See the BISEP In Action
Hot Tapping & Line Stop Case Studies

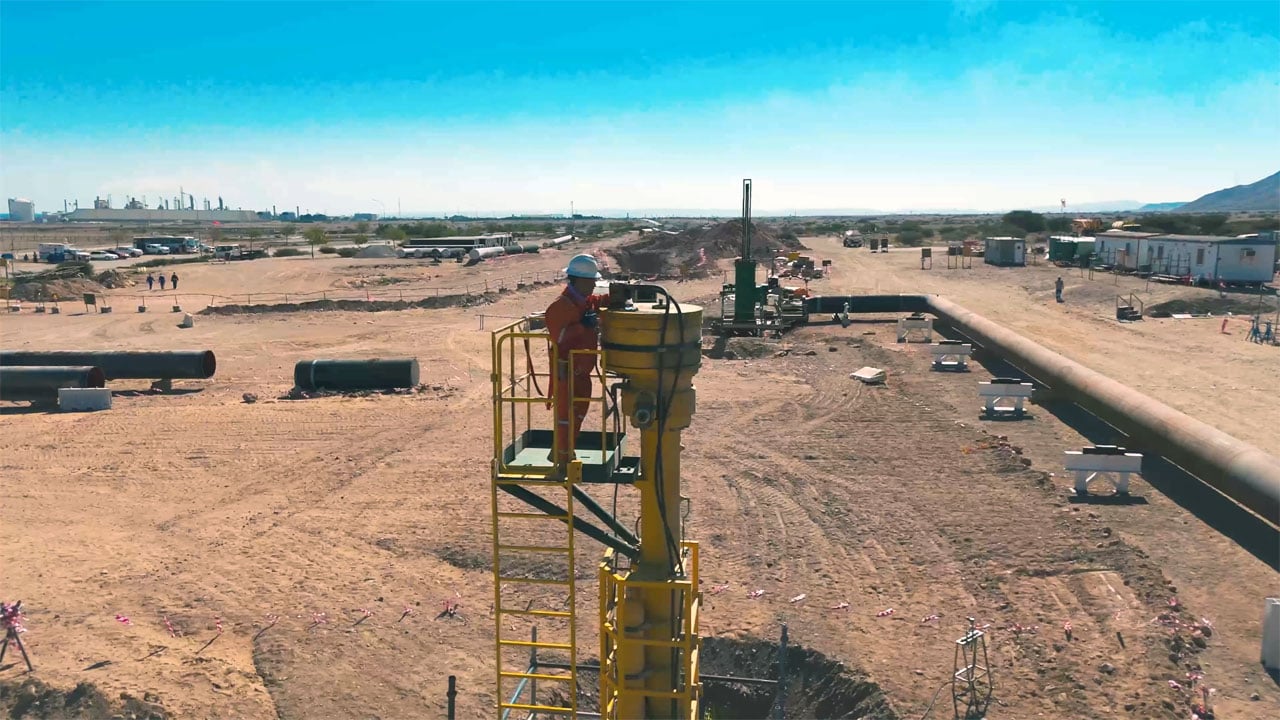

The BISEP® has been deployed extensively across the Middle East, and is the world’s first hot tap installed leak-tight double block and bleed isolation of high pressure liquid CO2 pipelines.
-
3" – 56"Pipelines
-
-20°C – 100°CTemperatures
-
Ambient to 2220 psiPressure Range
-
DNV TypeApproval
Field-Proven
Line Stop Technology
Product Information
BISEP Line Stopping
BISEP® offers significant safety advantages over traditional line stop technologies, with the hydraulically activated dual seals providing leak-tight isolation of live, pressurized pipelines.
Applications
- Pipeline launcher valve installation / replacement
- Pipeline repair, replacement, or decommissioning
- Pipeline / pipework re-routing
- Mid-line repair of pipeline defects
- Isolating pressure vessels
- Isolation of pipeline end manifolds, pipeline end terminals for repair, upgrade, or replacement

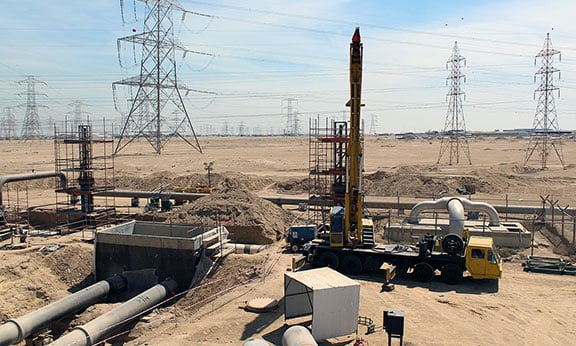

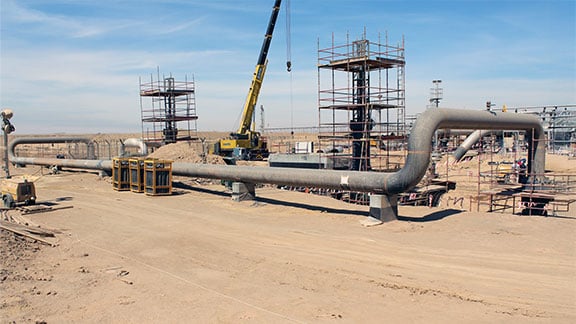

Multiple BISEPs® can be used to provide mid-line isolation of pipeline sections, and the introduction of a bypass line allows sectional isolation to take place without the need to shut down your entire system – or affect product flow.
The BISEP® is designed to resist backpressure and therefore can also be used as a test boundary for pipeline reinstatement testing.
Uniquely the BISEP® is designed to take 50% of its design pressure in the reverse direction. This allows pressure higher than the isolated pipeline pressure to be applied to the reinstated pipework (as a pressure test or purge) prior to removing the BISEP®.
STATS also supply split tee fittings or mechanical tie-in clamps for hot tap and line stop applications along with its patented dual seal slab valves and SureTap hot tap machines.
To allow the BISEP® and valve to be recovered a completion plug and blind flange can be provided to isolate the fitting branch off-take.
-
3" – 56"Pipelines
-
-20°C – 100°CTemperatures
-
Ambient to 1479 psiPressure Range
-
DNV TypeApproval
Reduced Cost
Shorter Timescales
Product Information

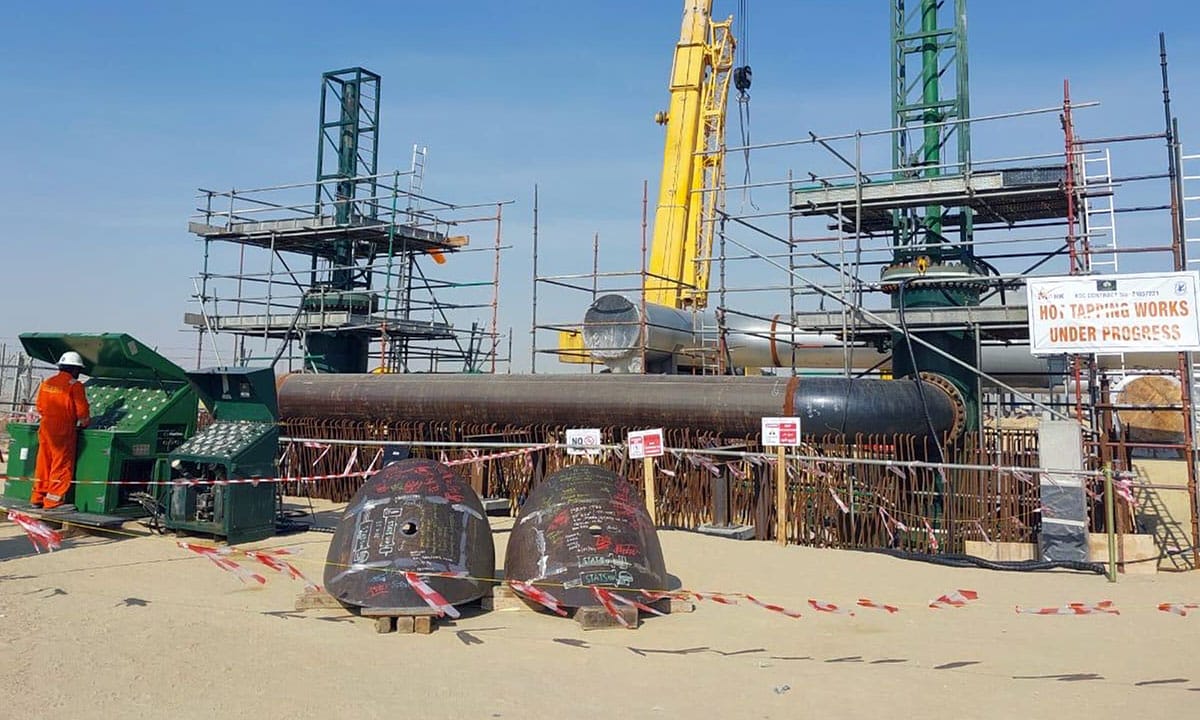

BISEP with Integrated Bypass
BISEP® can be configured with an integrated bypass through the launcher, ideally suited to lower pressure applications.
Additional Benefits
- The BISEP® launcher (housing) includes an integrated bypass which maintains production once the isolation is activated, resulting in no loss of production.
- Double block and bleed isolation through a single fitting with integrated bypass requires fewer fittings and significantly reduces costs and project timescales.
- Pipeline pressure maintains a fail-safe isolation independent of hydraulic activation.
- The BISEP® is installed into the pipeline unset allowing deployment into a flowing pipeline, resulting in no interruption to production and saving time on site.
