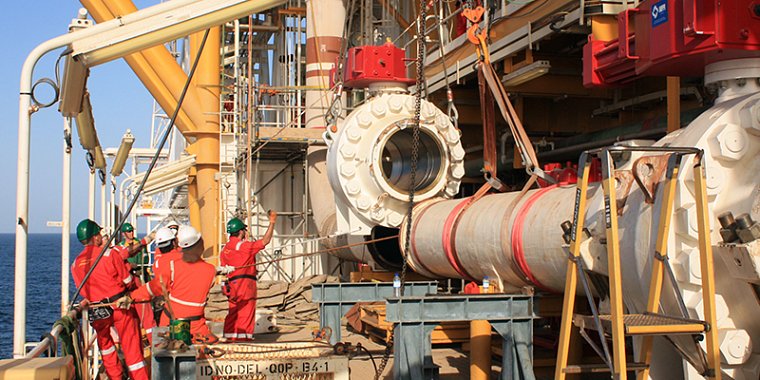

Pipe line valve changeout

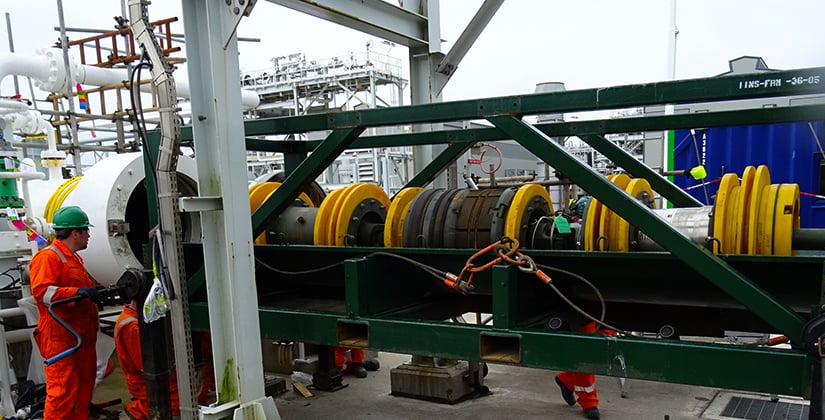

Pipeline Isolation Plug & Leak Testing Module

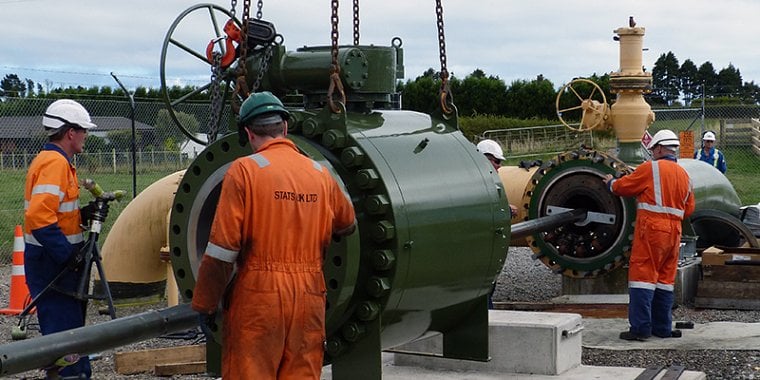

pipe line isolation tecno plug valve changeout
hot tapping line stop bisep australia
Subsea Hot Tapping & Plugging
SureTap Hot Tapping Services

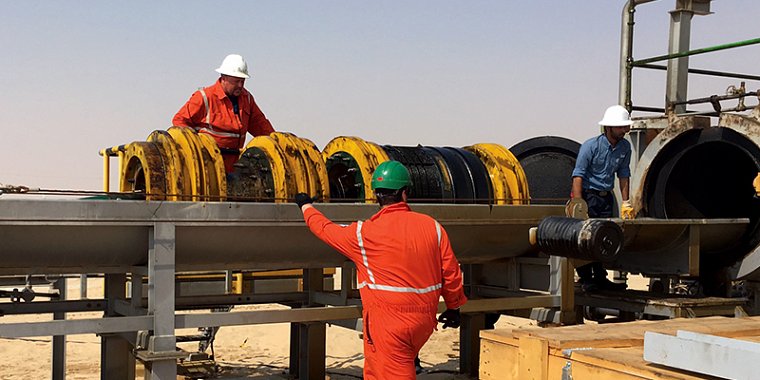

pipe line isolation plug valve changeout
Split Tee Fittings

Process piping and pipeline isolation is a key requirement for safe and efficient maintenance, modification and repair of oil, gas and petrochemical facilities. STATS Group provide a wide range of industry leading pipeline isolation plugs and line stopping equipment and offer a consultation service to assist operators in assessing the optimum solution for their pipeline isolation, hot tapping and line stopping challenges.

STATS extensive range of pipeline isolation, hot tapping and plugging services and equipment allow temporary pipeline isolation and intervention to be undertaken safely and efficiently on piggable or unpiggable pipelines or pipework systems.

With appropriate material selection and testing, pipeline isolation and line stopping can be undertaken in any pipeline medium. (eg. steam, liquid Co2, hydrocarbon liquid and gases etc). STATS extensive global track record of providing temporary pipeline isolation of onshore, topsides and subsea pipelines in a range of sizes from ¾ inch to 54 inches.

DNV GL Type Approval

STATS inline isolation tool the Tecno Plug® and BISEP® line stop tool are fully certified by DNV GL to verify that the design criteria satisfies the requirements for Pipeline Isolation Plugs to provide dual seal and isolation in accordance with; DNV-OS-F101 (Submarine Pipeline Systems) and recommended Practices; DNV-RP-F113 (Subsea Pipeline Repair) and in compliance with the following code; ASME BPVC Section VIII, Division 2.

Live Remote Monitoring System

Live Remote Monitoring System for witnessing Factory Acceptance Testing

Factory Acceptance Testing (FAT) of STATS equipment is an important milestone on every project, providing assurance to our clients the equipment for the workscope is manufactured, assembled and tested to specification and site requirements. Each FAT is conducted in compliance with agreed procedures and witnessed by our clients and, where required, an independent verification body. Using the live remote monitoring system, STATS offer a unique opportunity for clients to witness FAT’s without the need to attend our facilities, thereby providing significant savings in travel and accommodation costs and time out of the office.

Download the brochure for full details

Non-Intrusive Inline Isolation

Non-Intrusive Inline Isolation

The Tecno Plug® provides fail-safe double block and bleed isolation of pressurised pipelines while the system remains live and at operating pressure. Dual seals provide a zero-energy zone to enable maintenance work on pressurised systems to be carried out safely and efficiently.

Read More

Temporary Line Plugging

Temporary Line Plugging

Temporary line plugging can be achieved using the DNV GL type approved BISEP®. STATS patented BISEP provides fail-safe double block and bleed isolation deployed through a single full bore hot tap intervention, without the need for additional hot tapped bleed or vent ports.

Read More

Small Bore Temporary Line Plugging

Small Bore Temporary Line Plugging

The patented BI-STOP™ provides a unique temporary line plugging system to address challenges with small-bore pipework that have absent or limited isolation facilities. This cost-effective solution enables small-bore pipework to be isolated, cut and if required, terminated with a full-bore valve whilst the system remains live.

Read More

Hot Tapping Machines

Hot Tapping Machines

The SureTap® range of proprietary hot tapping machines provide performance and reliability for critical, high pressure tapping operations. Designed and built to incorporate industry leading features allowing taps to be performed safely on a wide range of pipeline materials and mediums, including use with sour (H2S) products.

Read More

Hot Tapping Fittings

Hot Tapping Fittings

Hot Tapping fittings facilitate the connection of new branch pipework to existing infrastructure without the requirement for welding. Mechanical Tie-In Clamps are routinely used to provide a flanged tee branch to enable hot tapping into an existing, live pipeline.

Read More

Split Tee Fittings

Split Tee Fittings

STATS designed and manufactured fittings can be provided on a quick turnaround to meet client specifications. All our fittings are interoperable with industry standard hot tap and line stop equipment.

Read More
