Fittings

STATS designed and manufactured fittings can be provided on a quick turnaround to meet client specifications. All our fittings are interchangeable with industry-standard hot tap and line stop equipment.

splitteeweldedfittings3-h380-1

Fitting Design & Manufacture Capabilities

  • ASME B31.3, ASME B31.4/8, CSA Z662 design basis
  • Designed to meet client specification, not client meeting STATS’ spec
  • Pressure/thickness and area replacement calculations
  • Code-specific material and testing requirements
  • Considerations for branch and equipment loading
  • Fittings designed and manufactured locally allowing for quicker delivery turnaround; fast turnaround of fitting drawings
  • STATS completion plugs and flanges are designed for interoperability with industry-standard tapping and line stop equipment
  • Finite element analysis (FEA) to confirm the suitability of fittings for BISEP loads (ASME VIII Div 2 part 5: plastic collapse and local failure)
  • In-house hydro-testing service available
  • Engineered hot tap design service available
  • Industry-leading documentation and traceability
  • Complete data books with design, MTR, weld, NDE and dimensional QA / QC information provided with every fitting
  • All fitting produced and controlled within our industry-leading ISO 9001 Integrated Management System program that ensures repeatable quality and consistency
  • Up to 70 ksi strength fittings; 50 ksi typical
  •  ½” to 60” split tees, class 150# to 900#

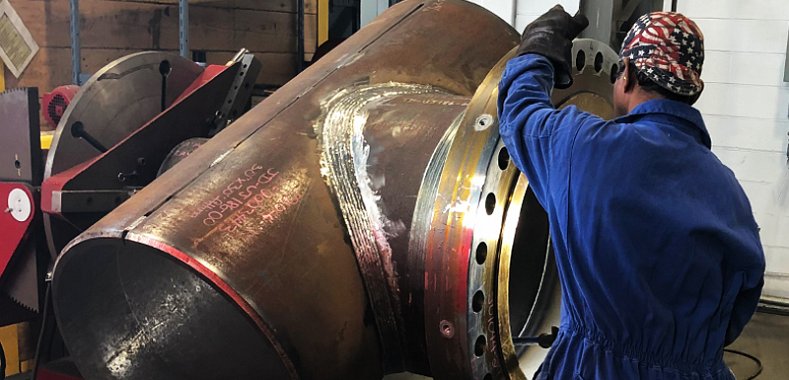

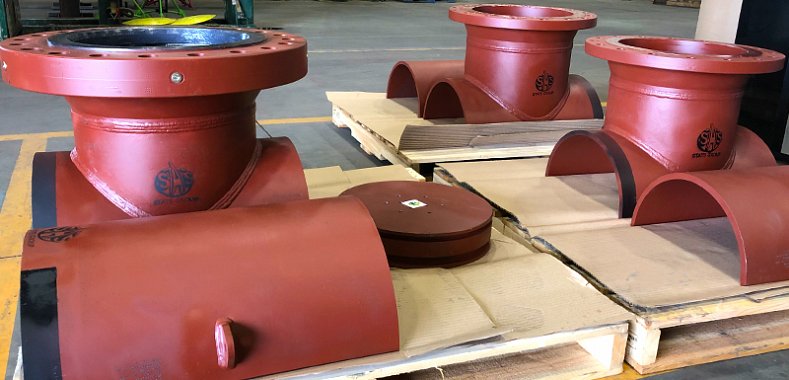

Welded Split Tee Fittings

Transmission Line Stop Fittings

  • Split Tees 2” to 60, 600#
  • 2” Vent / Purge fittings, 600#
  • 4” to 30” spherical, sleeved or non-sleeve, 600#
  • Top Out or Side-Out Tees, custom configurations, 600#
  • Structural non-pressure containing full encirclement saddles, up to 60” run, any branch size
  • All types CAT I or CAT II

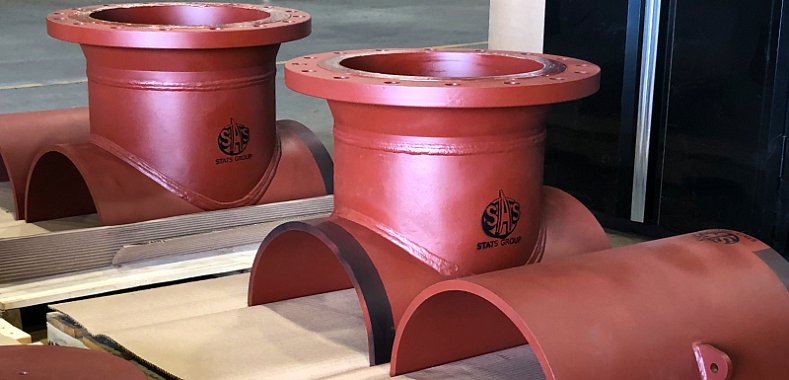

splitteeweldedfittings4-h380

Gas / Network Distribution Fittings

  • Split Tees 2” to 60, 600#
  • 2” Vent / Purge fittings, 600#
  • 4” to 30” spherical, sleeved or non-sleeve, 600#
  • Top Out or Side-Out Tees, custom configurations, 600#
  • Structural non-pressure containing full encirclement saddles, up to 60” run, any branch size
  • All types CAT I or CAT II
