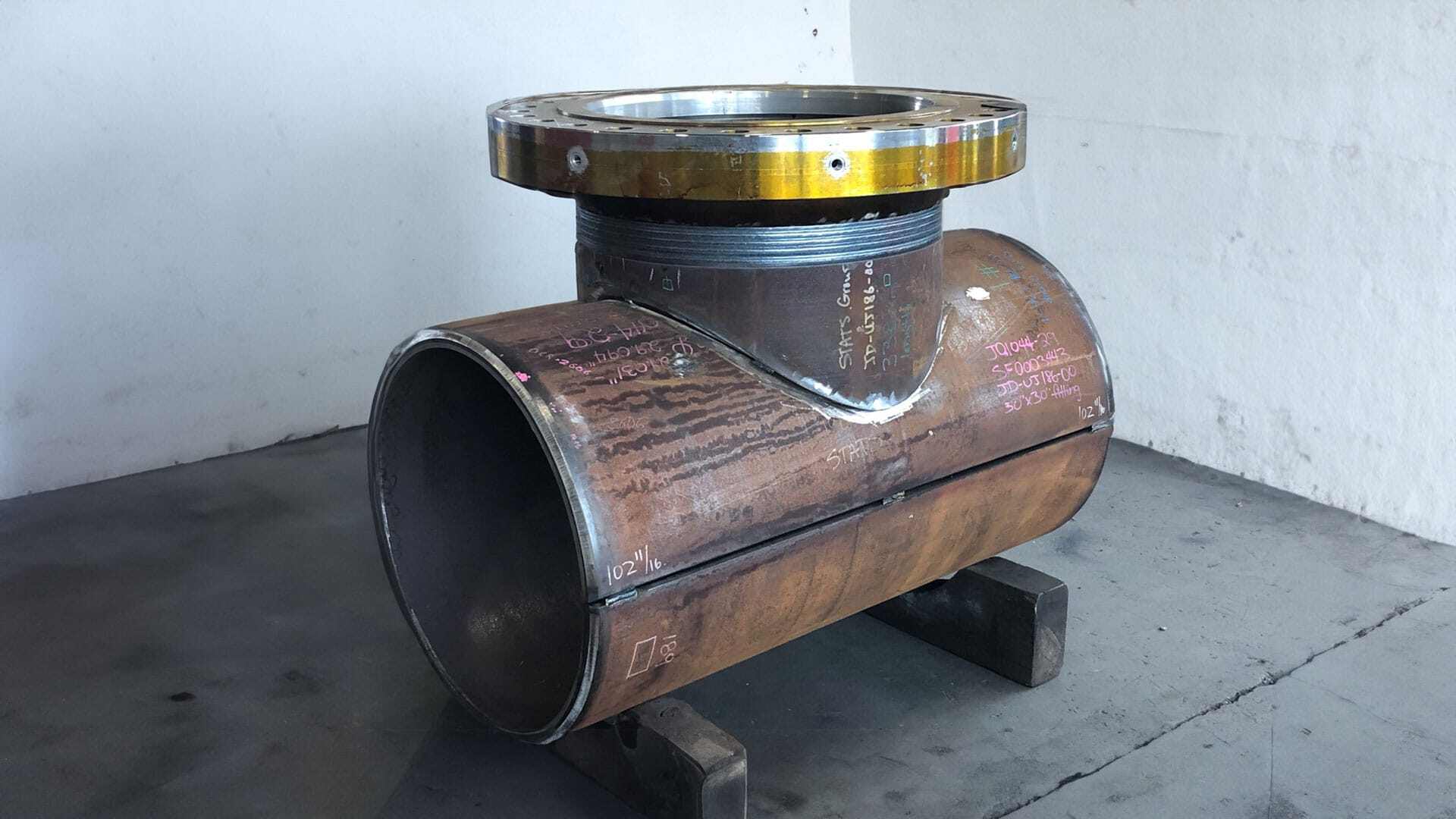

Fittings
STATS designed and manufactured fittings can be provided on a quick turnaround to meet client specifications. All our fittings are interchangeable with industry-standard hot tap and line stop equipment.
![splitteeweldedfittings3-h380-1](https://f.hubspotusercontent10.net/hub/7717268/hubfs/StatsGroup_August2020/images/splitteeweldedfittings3-h380-1.jpg?width=1200&name=splitteeweldedfittings3-h380-1.jpg)
Fitting Design & Manufacture Capabilities
- ASME B31.3, ASME B31.4/8, CSA Z662 design basis
- Designed to meet client specification, not client meeting STATS’ spec
- Pressure/thickness and area replacement calculations
- Code-specific material and testing requirements
- Considerations for branch and equipment loading
- Fittings designed and manufactured locally allowing for quicker delivery turnaround; fast turnaround of fitting drawings
- STATS completion plugs and flanges are designed for interoperability with industry-standard tapping and line stop equipment
- Finite element analysis (FEA) to confirm the suitability of fittings for BISEP loads (ASME VIII Div 2 part 5: plastic collapse and local failure)
- In-house hydro-testing service available
- Engineered hot tap design service available
- Industry-leading documentation and traceability
- Complete data books with design, MTR, weld, NDE and dimensional QA / QC information provided with every fitting
- All fitting produced and controlled within our industry-leading ISO 9001 Integrated Management System program that ensures repeatable quality and consistency
- Up to 70 ksi strength fittings; 50 ksi typical

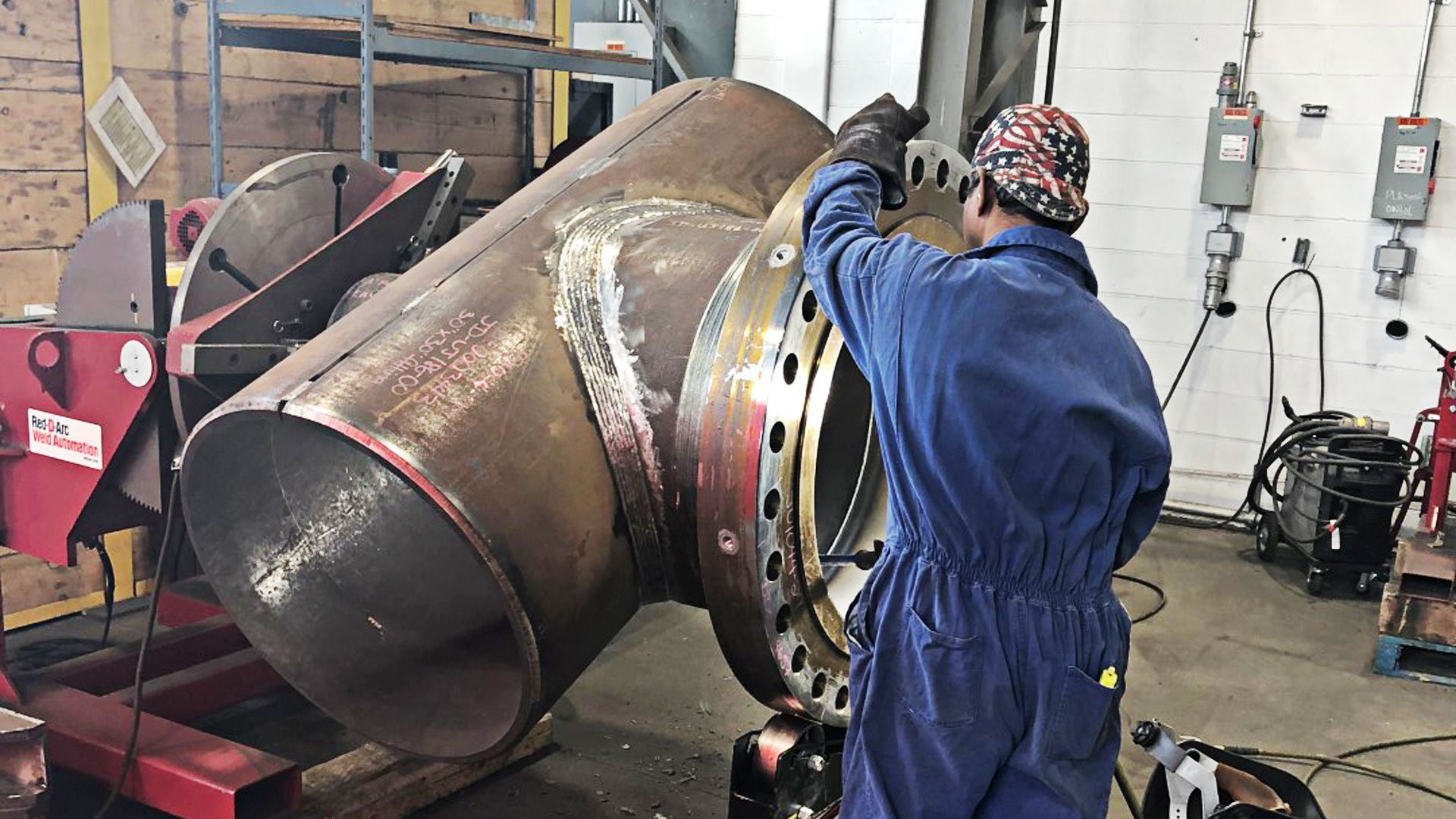

- ½” to 60” split tees, class 150# to 900#
![Welded Split Tee Fittings](https://7717268.fs1.hubspotusercontent-na1.net/hub/7717268/hubfs/STATS%20Group%20International%2c%20Canada.jpg?width=1200&name=STATS%20Group%20International%2c%20Canada.jpg)
Transmission Line Stop Fittings

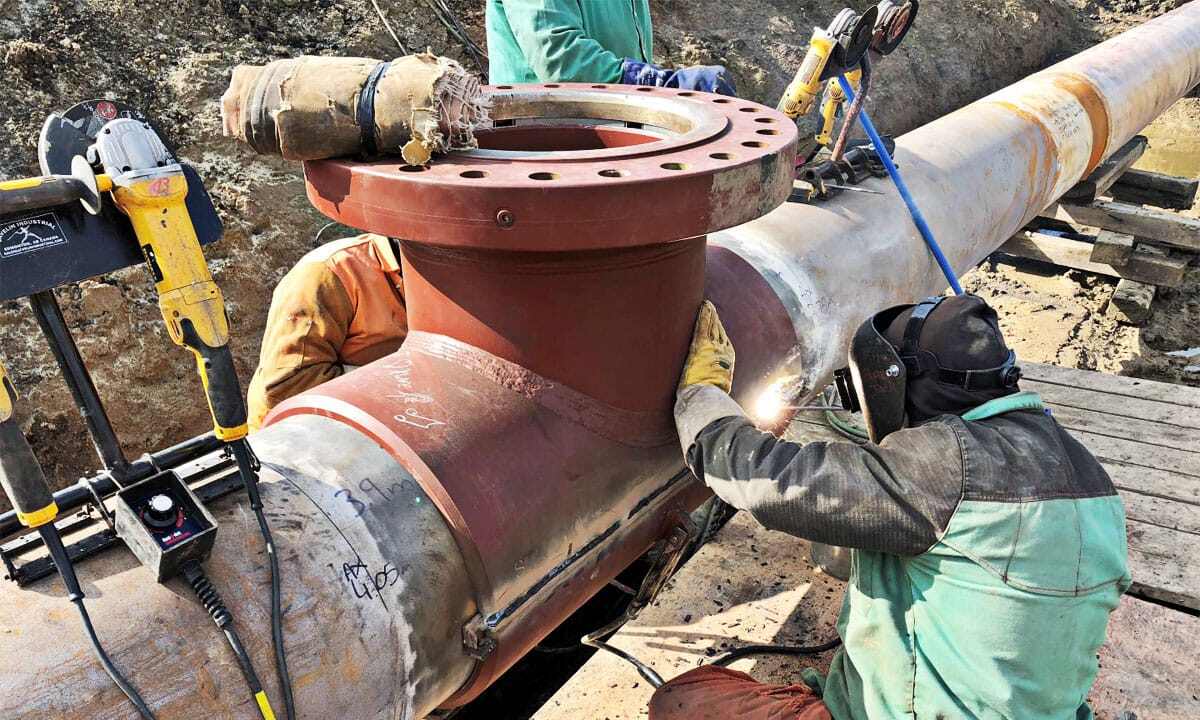

- Split Tees 2” to 60, 600#
- 2” Vent / Purge fittings, 600#
- 4” to 30” spherical, sleeved or non-sleeve, 600#
- Top Out or Side-Out Tees, custom configurations, 600#
- Structural non-pressure containing full encirclement saddles, up to 60” run, any branch size
- All types CAT I or CAT II
![splitteeweldedfittings4-h380](https://f.hubspotusercontent10.net/hub/7717268/hubfs/StatsGroup_August2020/images/splitteeweldedfittings4-h380.jpg?width=1200&name=splitteeweldedfittings4-h380.jpg)

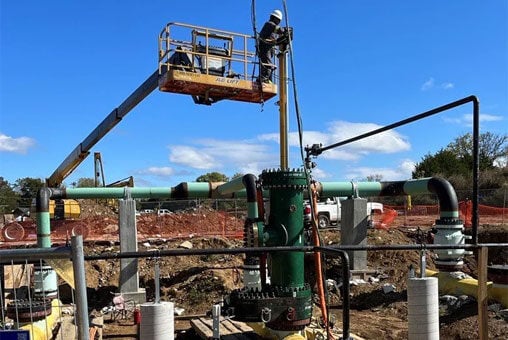

Gas / Network Distribution Fittings
- Split Tees 2” to 60, 600#
- 2” Vent / Purge fittings, 600#
- 4” to 30” spherical, sleeved or non-sleeve, 600#
- Top Out or Side-Out Tees, custom configurations, 600#
- Structural non-pressure containing full encirclement saddles, up to 60” run, any branch size
- All types CAT I or CAT II
