Localised Weld Test & Ambient Barriers

After completing a welded repair or modification of piping or process equipment a leak or strength test is required to confirm the integrity of the new weld. Traditionally, this is carried out by flooding and pressurising the entire piping spool or system, however this is not always practical. Localised weld test tools provide a fast and efficient method of verifying the integrity of butt welds, joints or other welded pipe components. Weld test tools reduce system downtime and increase worksite safety by limiting the test area to only the new weld or welded components. This prevents a full system pressurisation which is beneficial to mature systems by decreasing the potential for leakage.

STATS has gained an extensive global track record for providing localised hydrostatic testing services and hot-work barriers to operators and contractors during maintenance shutdowns and turnarounds.

in-lineweldtesttool-w640

STATS Hydraulically activated weld test tools are dual purpose and can be used during hot-work activities to provide a verified vapour barrier, protecting the worksite from potentially flammable or toxic vapours.

hydrostaticweldtesttools-w250h150

STATS reliable and efficient equipment operated by competent, multi-skilled technicians offer a responsive service that improves maintenance efficiency, reduces client expenditure, while maintaining safety.

Multi-skilled personnel can operate test tools, fit mechanical pipe connector and where required provide onsite pipe cutting services. This single source supply minimises lines of communication and limits personnel and accommodation requirements, reducing expenditure and downtime.

Specifications

Size

½” to 36”

Pressure

690 bar / 10,000 psi

Activation

Mechanical & Hydraulic

Applications

  • Verified atmospheric barriers to enhance worksite safety during hot-work activities
  • Localised hydrostatic / pneumatic testing, limiting test medium volume and preventing flooding and pressurising the entire system.

Related Resources

Maximising Shutdown Efficiency to Minimise Risk and Downtime

Maximising Shutdown Efficiency to Minimise Risk and Downtime

Hot-work barriers, localised hydrostatic testing and mechanical pipe connectors to enhance shutdown maintenance
Access Webinar

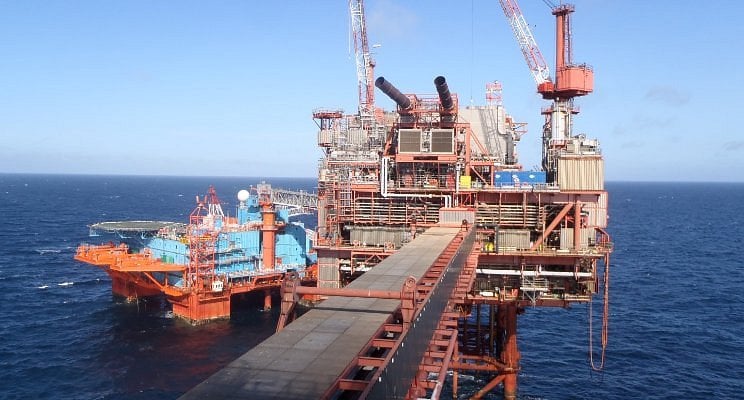

Shutdown Services, North Sea, UK
