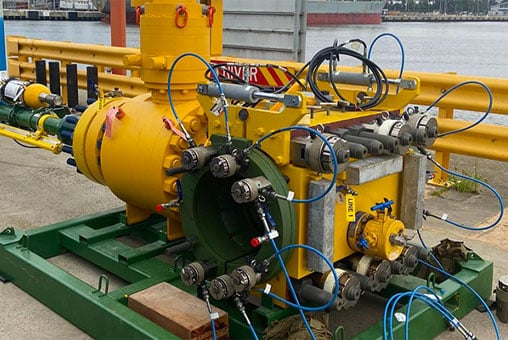

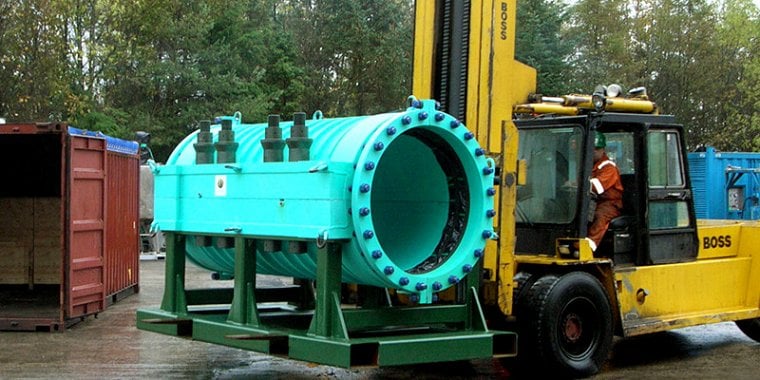

A subsea tie-in clamp and hot tapping in Australia provided a permanent connection to an existing live pressurised pipeline. Dual seals are set and tested prior to setting the structural locks.
Mechanical Clamps for Onshore/Topsides Process Pipe and Pipeline Repairs
STATS' range of mechanical clamps are designed and manufactured for general pipe repair, pressure containment, and structural integrity on onshore and topside facilities.
While mass-produced alternatives are available, STATS Group excels in providing highly engineered solutions for demanding applications and specific client requirements.
Pipeline and Process Pipe Repair
Structural Repair Clamps

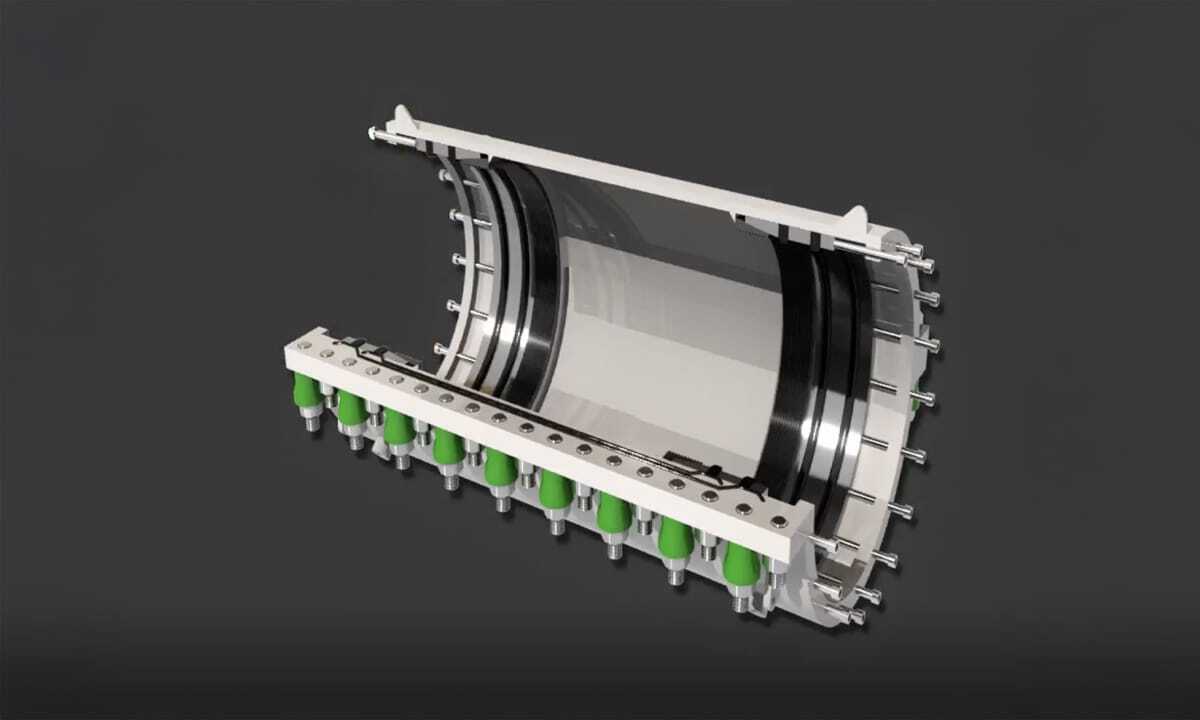

Building on the capabilities of pressure containment clamps, the enhanced functionality of STATS' structural repair clamps provide not only pressure containment but also axial restraint and radial support to the pipe.

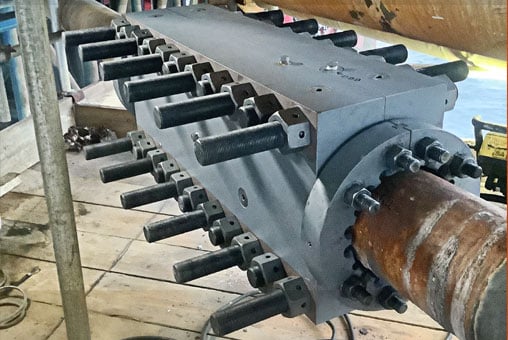

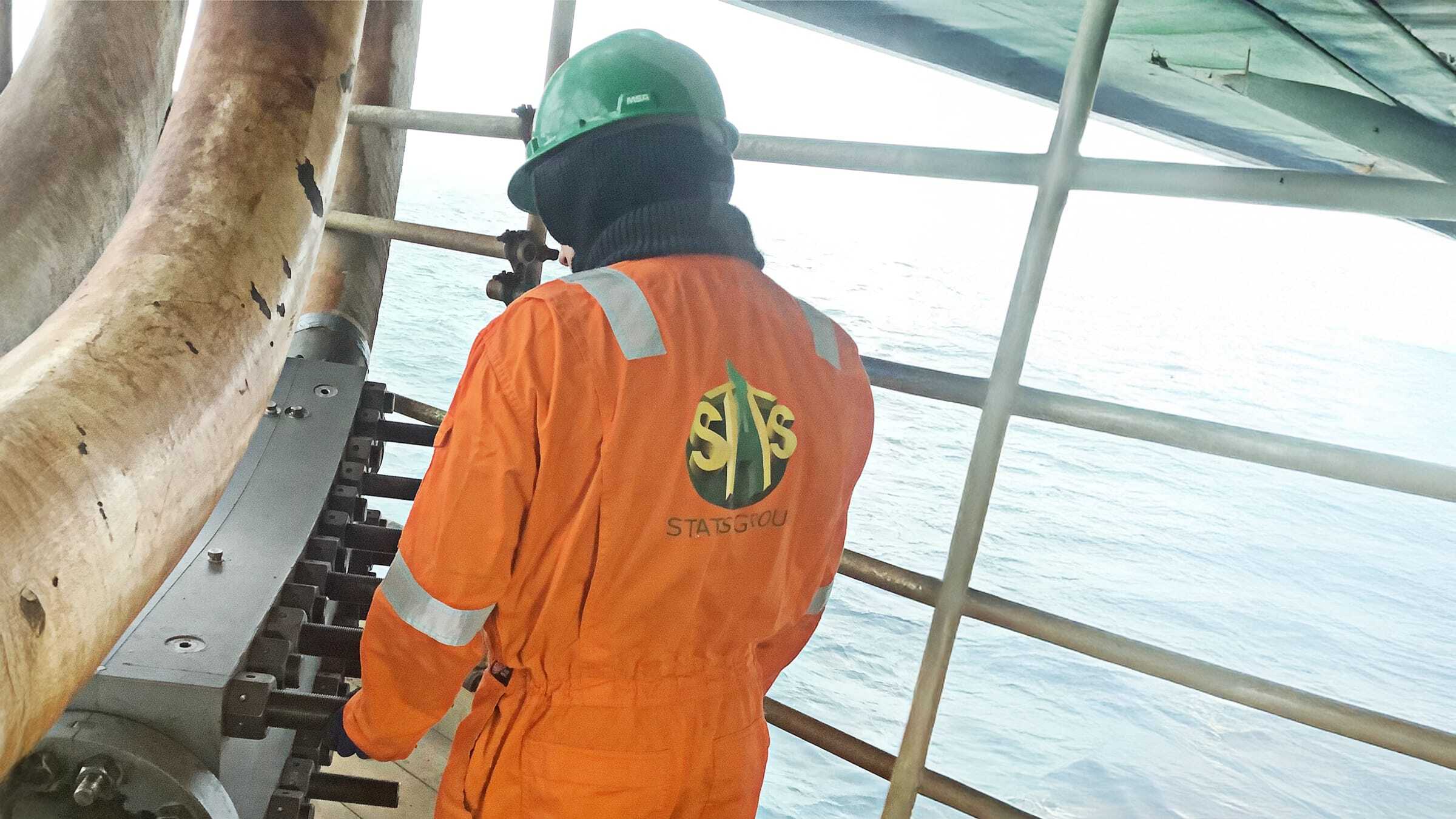

STATS has successfully designed and installed bespoke 8-inch permanent super duplex structural repair clamps for high-pressure, high-temperature (down to -45°C) applications in the North Sea, specifically engineered to fit on a pipe bend section and meet a 25-year design life.
Structural Repair Clamps: What You Need To Know
- Mechanism: Fitted with taper locks, these clamps are designed to transfer the full axial load of the pipe to the clamp body, enabling them to withstand full pipeline separation loads. They can also provide radial support when grout-filled.
- Applications: These clamps are crucial for repairs where the structural integrity of the pipeline is compromised or where there is a risk of pipe separation.
Structural Clamp
Pipeline and Process Pipe Repair
Pressure Containment Clamps

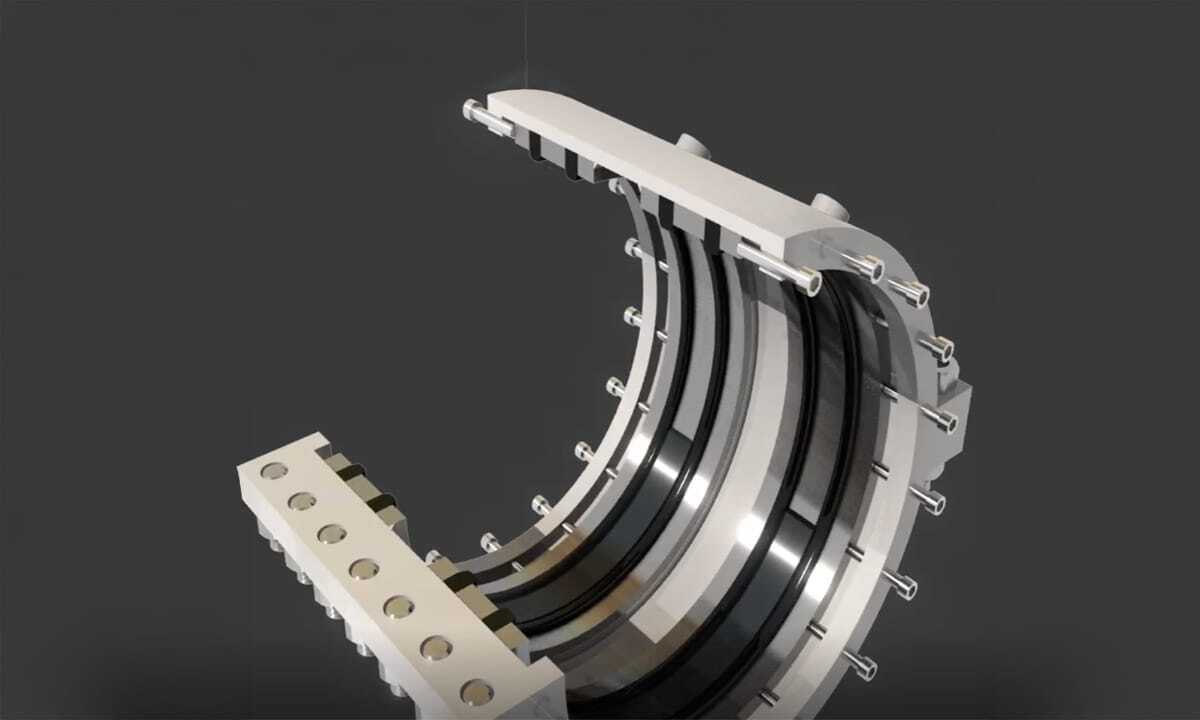

These clamps are engineered to be installed on damaged or leaking pipework, effectively encapsulating the defect within the clamp body and regaining pressure integrity through robust elastomer seals that engage with the sound parent pipe.
Our designs incorporate high quality elastomer seals that are highly compliant to poor pipe conditions or ovality.
Pressure Containment Clamps: What You Need to Know
- Installation: Designed for simple installation with minimal disruption to the existing pipework or the ongoing operation of the system.
- Key Features: They typically seal against the pipeline using compression flanges and are available with single or dual seals, offering body cavity or annulus test capabilities.
- STATS' Advantage: For clients who require very specific specifications, non-standard materials, or specialised coatings, STATS Group offers a superior solution, differentiating itself from companies that standardise on a fixed design.
Pressure Containment Clamp
Pipeline and Process Pipe Repair
Self-Energised Strap Clamps : Patented Localised Sealing and Encapsulation Solutions
STATS' patented strap clamps represent a highly specialised and innovative solution for localised pipe repair and encapsulation applications, distinguished by their unique sealing mechanism.
STATS' Strap Clamps: What You Need To Know
- Installation: Light weight and low profile allows ease of installation even in restricted spaces.
- Configured with a domed cap for encapsulating integrity issues. Useful for sealing over components such as branches, flanges or instrumentation points.
- Localised Sealing: Reduces loads that need to be restrained, they are therefore lighter and easier to handle than traditional, full encirclement repair clamps.
- Superior Pipe Surface Accommodation: Dual elastomeric seals accommodate a poor exterior surface finish.
- Dual seals provide an annulus test facility avoiding pressure testing defective area and risking further damage.
Unique Self-Energised Sealing Mechanism
The core differentiator of STATS' strap clamps is their self-energised sealing capability. Once pressure is applied to the seal housing, the pipe seal becomes energised by the differential area acting across the cartridge. This "piston effect" ensures that the seal maintains continuous contact with the pipe, even if the straps stretch, which is especially beneficial for thin pipe walls.
This patented technology provides a reliable dual seal that is superior to conventional strap clamps, which can lose pressure and seal integrity as straps stretch under load.

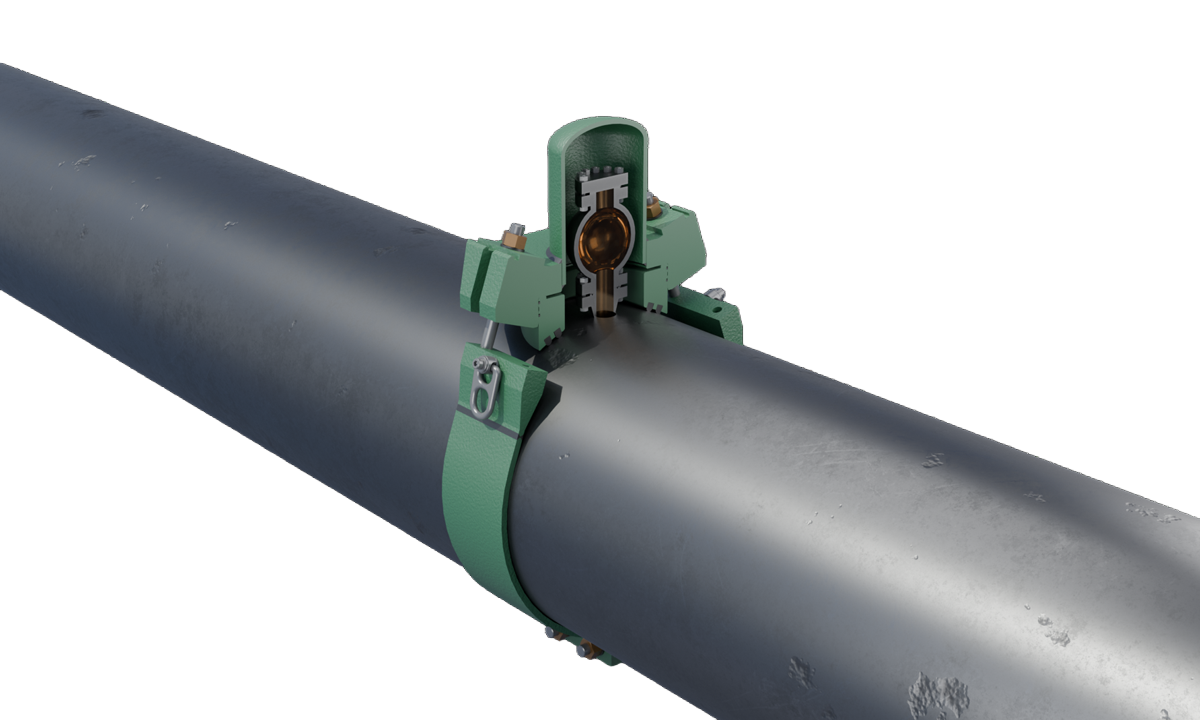

Localised Repair and Encapsulation: These clamps are configured with a domed cap for encapsulation applications, allowing for sealing over branches, flanges, instrumentation or illegal hot tapping points.
Strap Clamp Repair

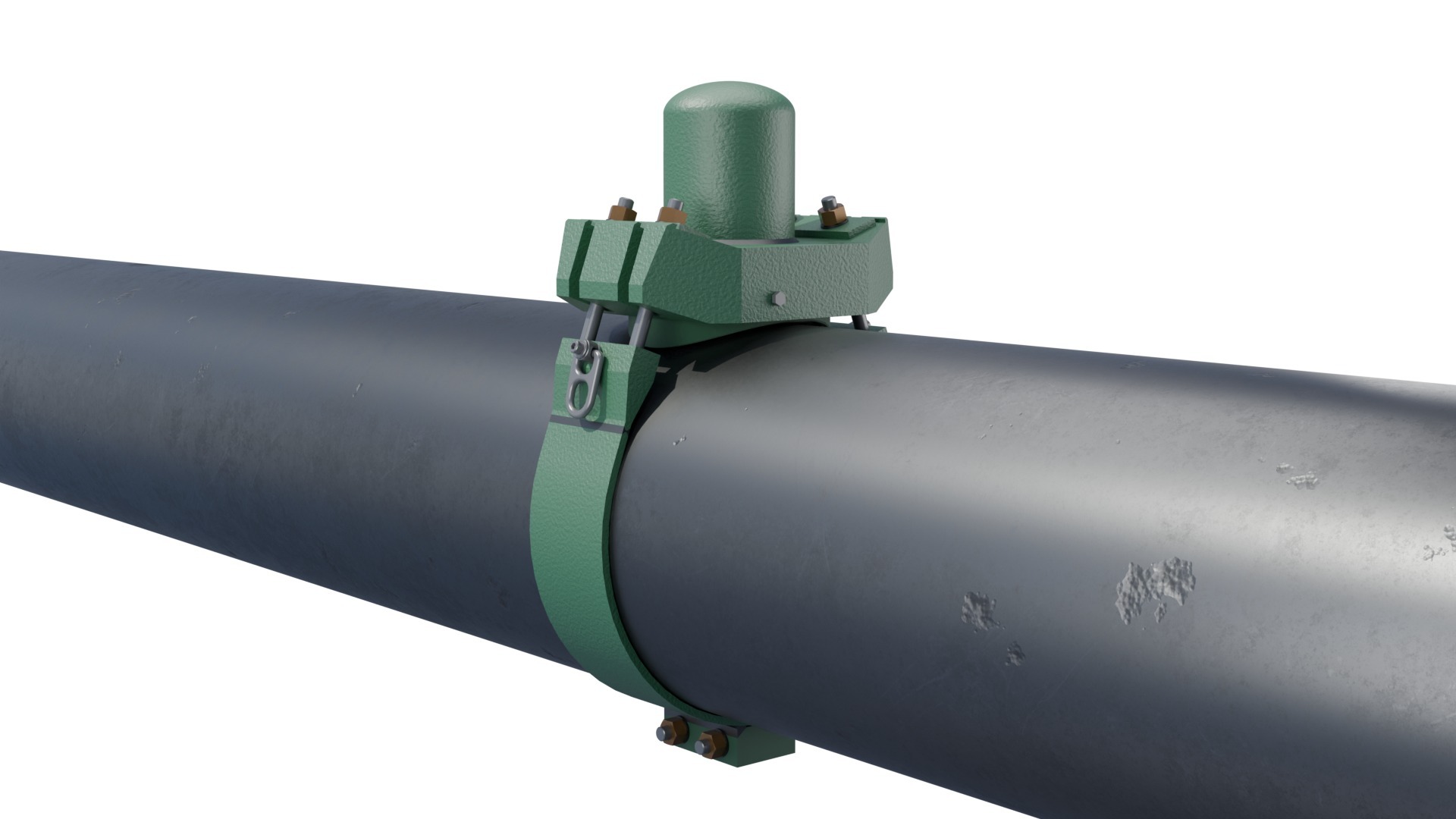

Strap Clamp Encapsulation Repair Clamp
Design and Installation
Lightweight and Low Profile: These clamps are designed to be lightweight and offer a low profile, allowing for quick and efficient installation even in restricted spaces.
Localised Sealing: They provide a localised dual seal on the pipe surface using a circular ‘D’ seal mounted in a profiled groove that conforms to the pipe's outside diameter. This localised sealing area reduces the loads that need to be restrained, making them much lighter and easier to handle than traditional full encirclement repair clamps.
Seal Testing: Dual seals provide an annulus test facility, avoiding pressure testing the defective area and risking further damage.
Pipe Surface Accommodation: The elastomeric dual seals can accommodate a poor surface finish on the pipe's exterior, though coatings must be fully removed and deep gouges must not impinge on the seal contact area.
Process Pipe Repair
Pinhole Leak Clamps

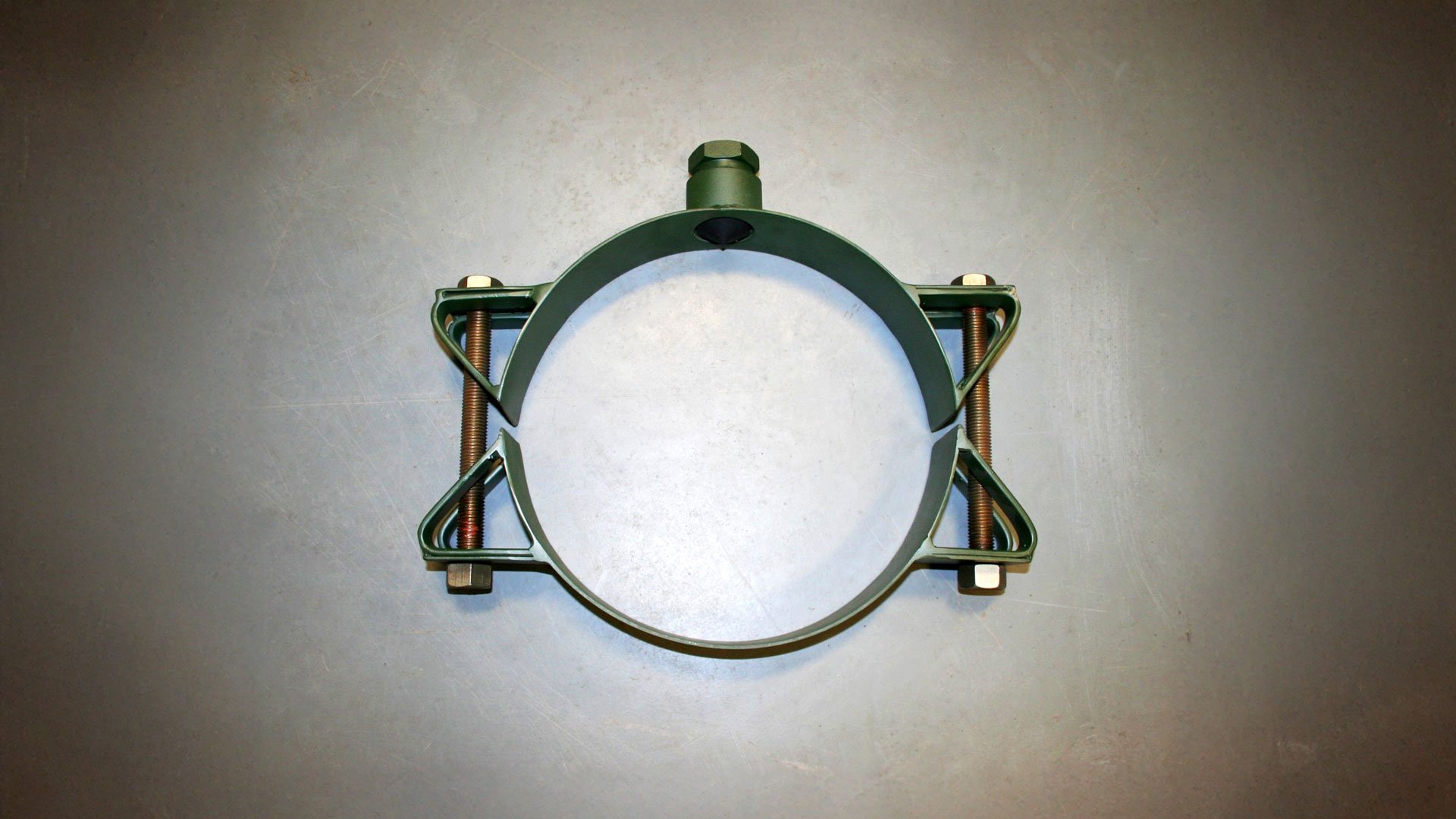

Pinhole leak clamps are essential tools for the rapid and versatile repair of localised pin-hole leaks or defects up to 12 millimetres in process piping within oil and gas facilities. These clamps are particularly effective for patching small holes and defects.
Economical for general use, pinhole clamps offer a temporary, robust remedy for "critical" or "high-risk" pinhole leak scenarios, while a permanent, engineered solution is sought. They’re especially useful where factors like demanding operating conditions, environmental challenges, or the need for high reliability in a "temporary" fix situation are at play.
Pinhole Leak Repair Clamps: What You Need To Know

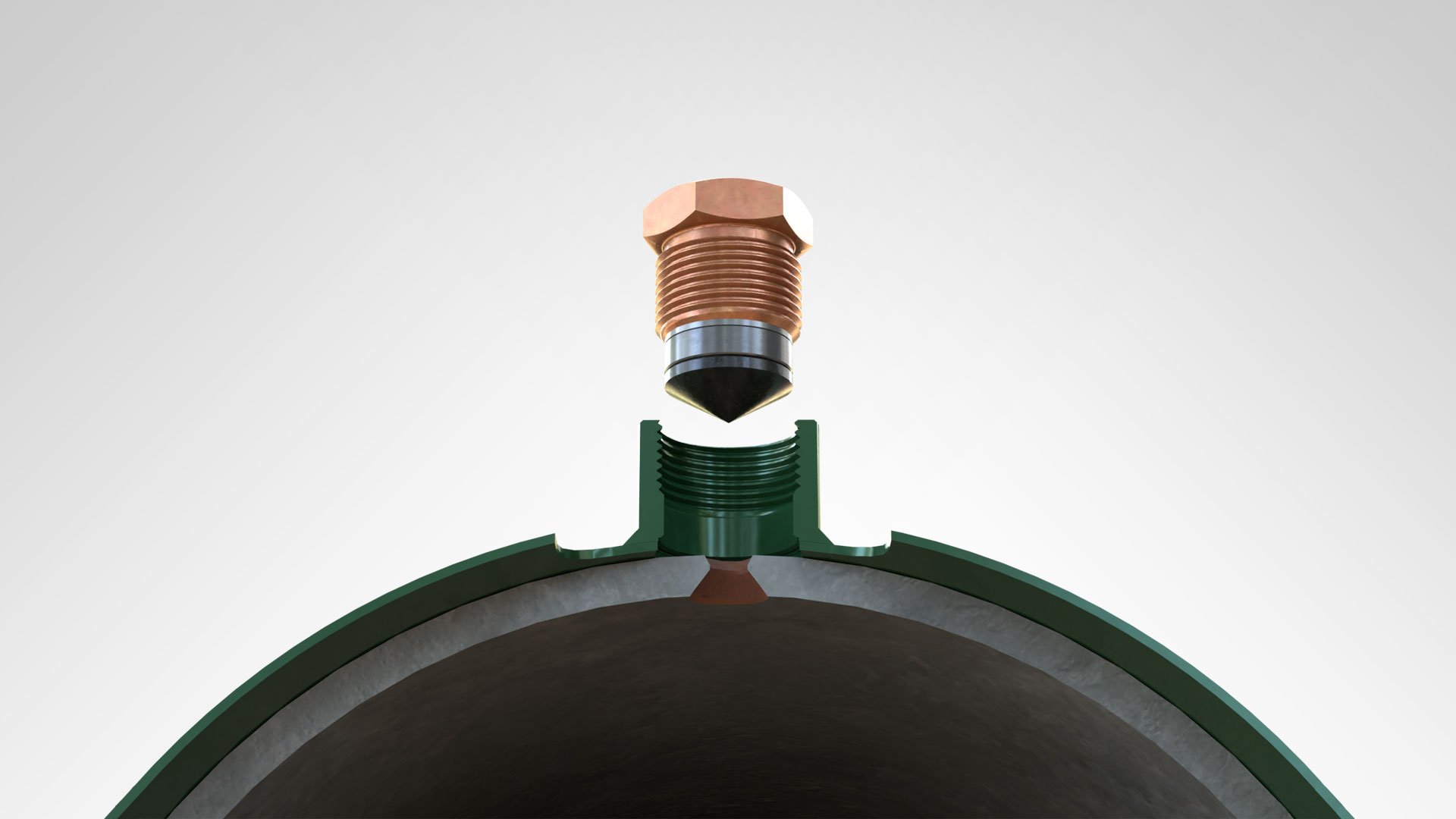

- Mechanism: The clamp consists of two halves that fit around the pipe, tightened by bolts. A compression screw with an elastomer sealing cone is then inserted and torqued into position at the leak point to create an effective seal.
- Key Features: For rapid and versatile repair of localised pin-hole leaks or defects up to 12 millimetres. They feature a Xylan coating for excellent corrosion resistance.
- Availability: They are available in standard sizes from 2” up to 48” and for pressures up to 153 Bar.
- STATS' Advantage: Known for their simple and rapid installation onto a live leak with minimal disruption, they require no pipework preparation.
Pinhole Leak Clamp
Subsea Pipeline Repair Clamps
For Harsh Offshore Environments

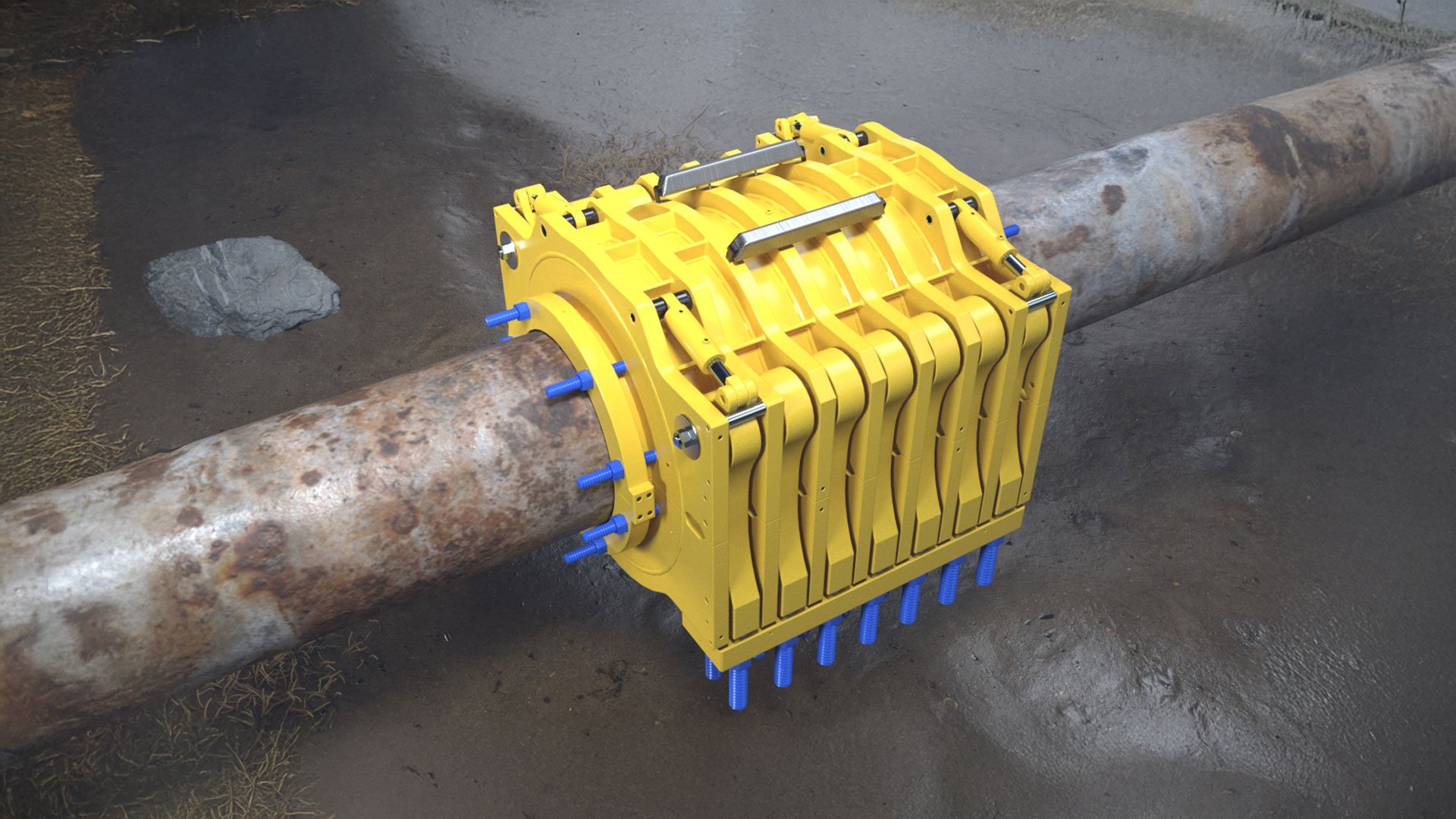

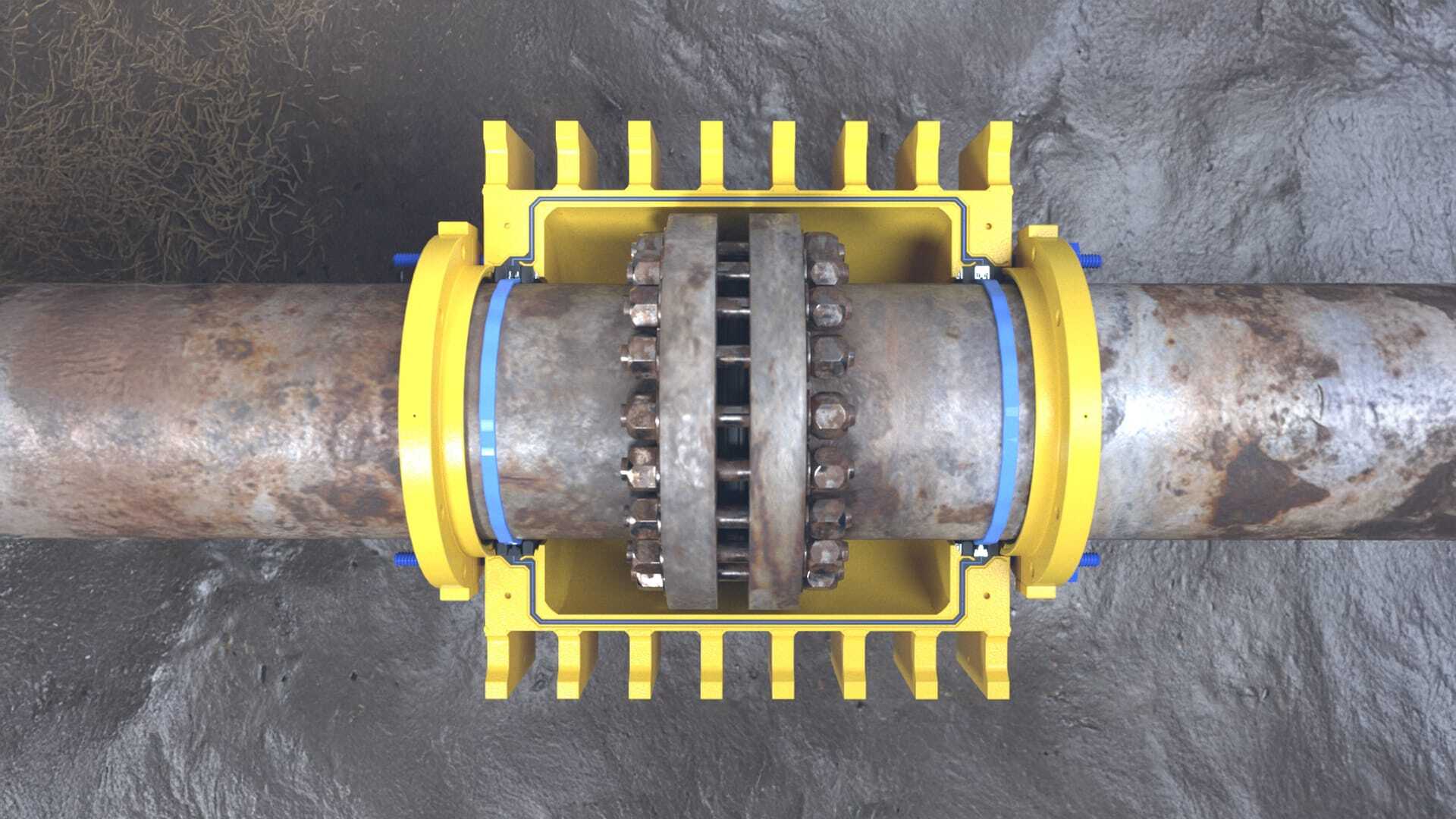

Addressing the unique challenges of underwater operations, from pressure and corrosion to installation difficulties, STATS’ robust subsea repair clamps are designed for effective leak sealing and structural repair in the harshest offshore conditions. They're available for installation either by divers or by ROVs, remotely operated vehicles.
