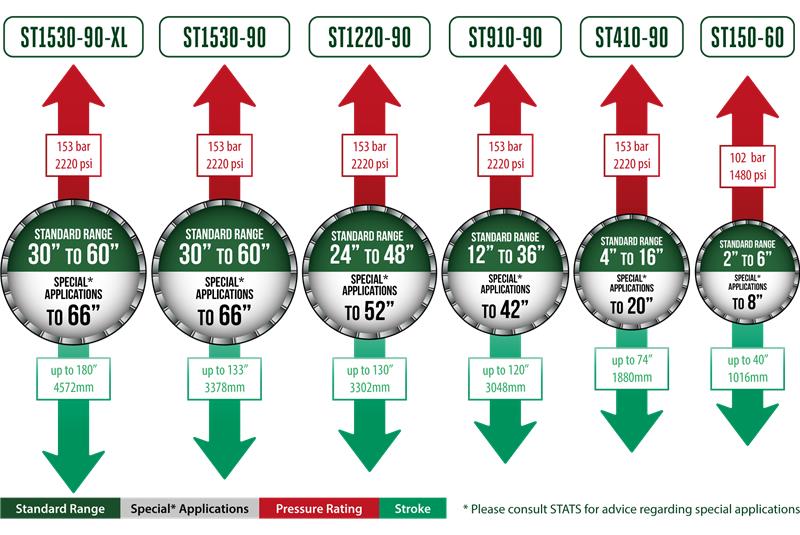

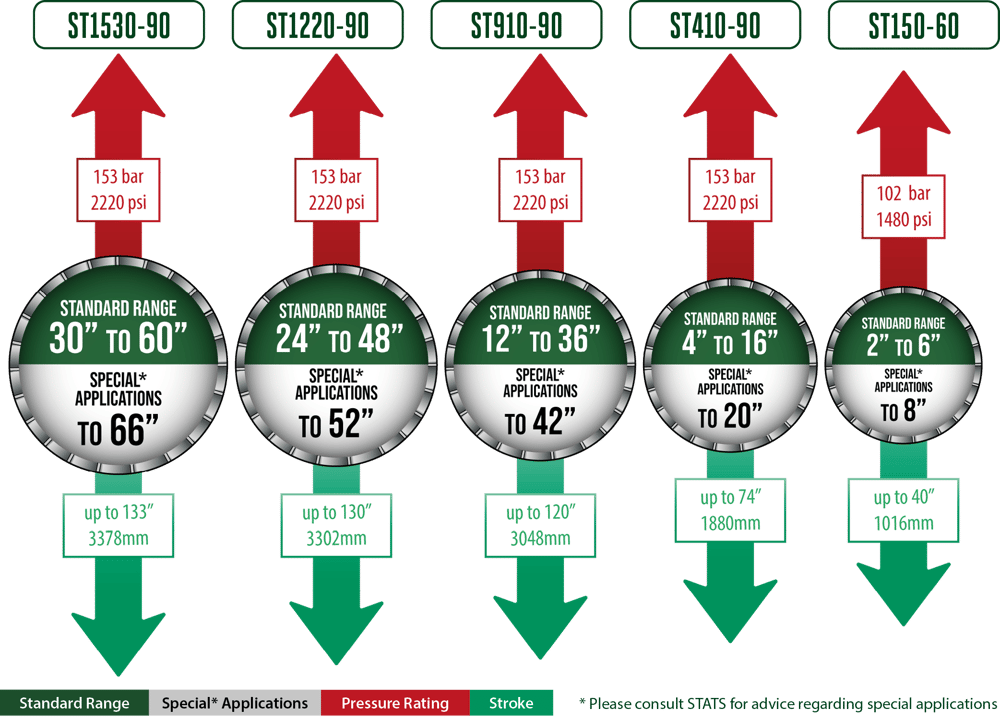

SureTap Range
ST1530-90 Hot Tapping Machines
- 30” – 60” (66”*) cutter size
- 153 bar / 2220 psi pressure rating
- Pressure class: ANSI Class 900
- Process fluid seal housing features dual seal configuration
- Positive retention pilot drill system for robust securing and recovery of the cut pipe coupon
- Pressure compensated feed system
- Variable speed and feed configuration
- Suitable for use with sour (H2S) products
- Subsea compatible
- Compatible with industry standard tapping equipment
- Capable of deploying and recovering completion plugs
- Dedicated transportation frame for secure shipping, storage and routine maintenance
- Dedicated workstation for ease of use and operator safety
- Power provided from a portable, custom hydraulic power unit (HPU)
*Please consult STATS for cuts up to 66"
ST1220-90 Hot Tapping Machines
- 24” – 48” (52”*) cutter size
- 153 bar / 2220 psi pressure rating
- Pressure class: ANSI Class 900
- Process fluid seal housing features dual seal configuration
- Positive retention pilot drill system for robust securing and recovery of the cut pipe coupon
- Pressure compensated feed system
- Variable speed and feed configuration
- Suitable for use with sour (H2S) products
- Subsea compatible
- Compatible with industry standard tapping equipment
- Capable of deploying and recovering completion plugs
- Dedicated transportation frame for secure shipping, storage and routine maintenance
- Dedicated workstation for ease of use and operator safety
- Power provided from a portable, custom hydraulic power unit (HPU)
*Please consult STATS for cuts up to 52"
ST910-90 Hot Tapping Machines
- 12” – 36” (42”*) cutter size
- 153 bar / 2220 psi pressure rating
- Pressure class: ANSI Class 900
- Process fluid seal housing features dual seal configuration
- Positive retention pilot drill system for robust securing and recovery of the cut pipe coupon
- Pressure compensated feed system
- Variable speed and feed configuration
- Suitable for use with sour (H2S) products
- Subsea compatible
- Compatible with industry standard tapping equipment
- Capable of deploying and recovering completion plugs
- Dedicated transportation frame for secure shipping, storage and routine maintenance
*Please consult STATS for cuts up to 42"
ST410-90 Hot Tapping Machines
- 4” – 16” (20”*) cutter size
- 153 bar / 2220 psi pressure rating
- Pressure class: ANSI Class 900
- Process fluid seal housing features dual seal configuration
- Positive retention pilot drill system for robust securing and recovery of the cut pipe coupon
- Pressure compensated feed system
- Variable speed and feed configuration
- Suitable for use with sour (H2S) products
- Subsea compatible
- Compatible with industry standard tapping equipment
- Capable of deploying and recovering completion plugs
- Dedicated transportation frame for secure shipping, storage and routine maintenance
*Please consult STATS for cuts up to 20"
ST150-60 Hot Tapping Machines
- 2” – 6” (8”*) cutter size
- 102.1 bar / 1481 psi pressure rating
- Pressure class: ANSI Class 600
- Variable speed and feed configuration
- Suitable for use with sour (H2S) products
- Subsea compatible
- Compatible with industry standard tapping equipment
- Capable of deploying and recovering completion plugs
- Dedicated transportation frame for secure shipping, storage and routine maintenance
*Please consult STATS for cuts up to 8"
Sizes below 2" can be conducted with third party machines.
