Remote Tecno Plug, National Transmission System

Innovative new technology to isolate gas pipelines in need of repair or maintenance has shown to prevent gas leakages and cut carbon dioxide emissions by 95%.

Innovative new technology to isolate gas pipelines in need of repair or maintenance has shown to prevent gas leakages and cut carbon dioxide emissions by 95% compared with venting pipeline contents to atmosphere - the equivalent of switching off 1,760 gas boilers for a year or taking 1,000 cars off the road.

National Gas, which owns and operates over 7,600km of gas pipelines underground, has successfully adopted new technology used to repair pipelines with STATS Group’s Remote Tecno Plug® (RTP) in a recent project near St Cyrus in Scotland. The RTP was trialled to reduce the emissions released during pipeline isolation, a crucial process used by operators to stop gas from leaking while they perform upgrades and maintenance on the pipes. Usually, this is done through reducing the volume of gas in the pipeline by a process called recompression and then venting the remaining gas to atmosphere. The efficient use of the RTP allows the work to be undertaken more quickly, with zero leaks during operations, improving safety and overall discharge of greenhouse gases significantly reduced.

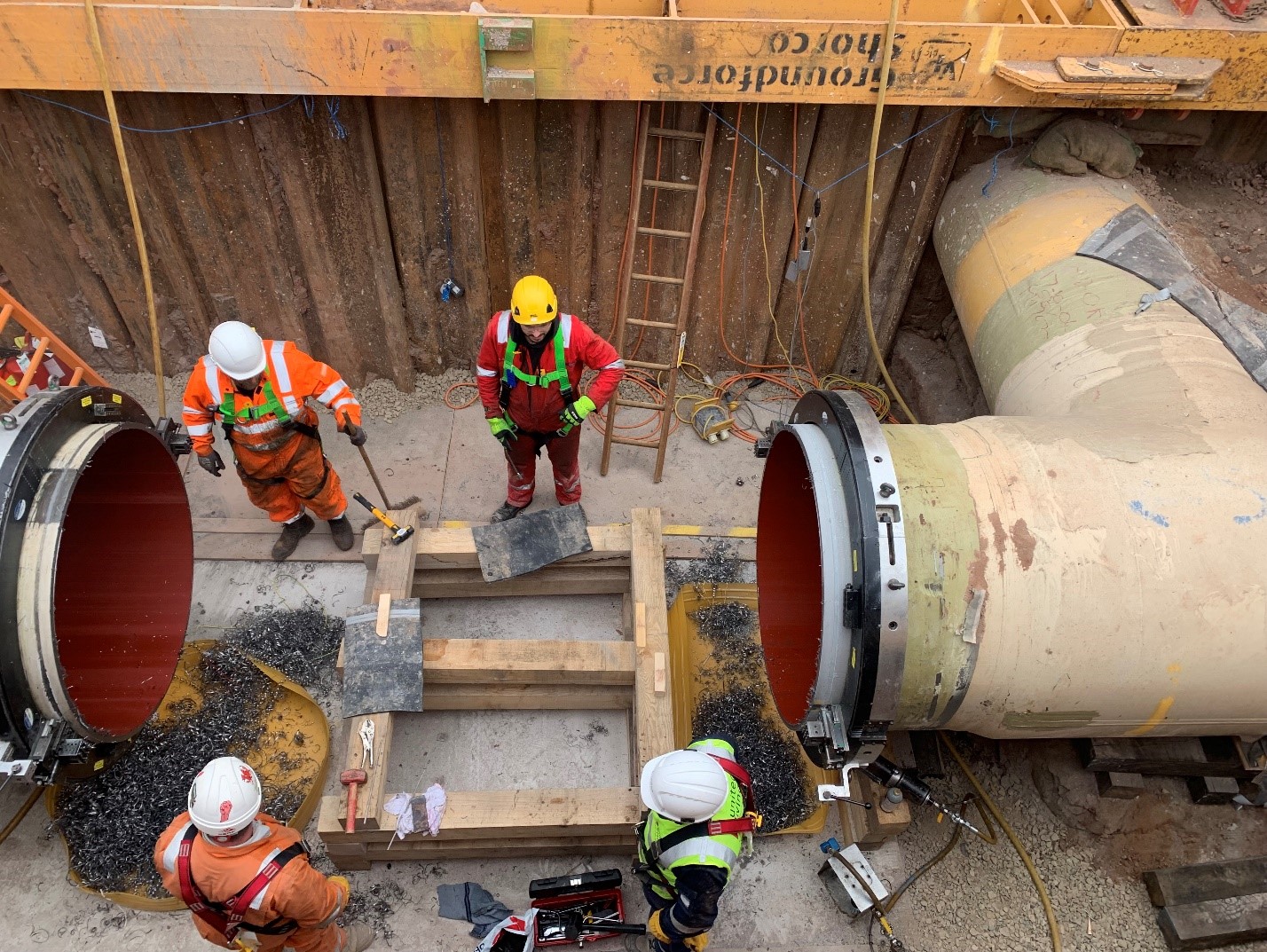

48in RTP, maintenance on live NTS gas pipeline

Remote Tecno Plug sealing a 56km-long, 48-inch pipeline at 55 bar, ensuring a leak-proof and fail-safe isolation allowing isolation joint to be cut out and new one welded into pipeline.

Project managers estimated that traditional venting techniques would have emitted 233 tonnes of gas. However, the RTP reduced emissions to 9.5 tonnes, saving gas released into the atmosphere, but also resulting in significant cost savings of over £100,000 of gas not wasted.

This success has prompted National Gas to formalise a policy encouraging the use of this technology in future isolation projects across the UK – with potential for these tools to be adopted by the individual gas distribution networks across the UK in future.

The UK has a legal obligation to reach net zero emissions by 2050 to address climate change, but gas is still integral to the UK, keeping the lights on and industries fuelled. It’s also important for the country’s energy security, making it resilient to demand spikes or pressures on the system. The gas industry is working to ensure energy demand continues to be met, while making improvements where possible to help reach climate targets – including the implementation of new technology like the RTP.

Kirsty McDermott, Senior Engineer at National Gas, said:

“Using plugs like the RTP can greatly reduce emissions for temporary pipeline isolations, and on this project emissions were reduced by up to 24 times compared to traditional recompression methods.

“In addition to the environmental and economic benefits relative to reduced venting requirements, carrying out the trial work allowed us to interrogate the integrity of our pipelines and ensure they continue to deliver energy to where it’s needed across the UK.”

Neil Mackay, Group Senior Business Development Manager at STATS, said:

“This was the first use of our innovative pipeline isolation plug technology on the National Transmission System and following the successful outcome on the Project, National Gas will update existing policies making use of isolation tools business as usual, which in turn will reduce barriers, increase efficiency and enable more critical maintenance work to be completed”.

STATS' RTP technology successfully sealed a 56km-long, 48-inch pipeline, ensuring a leak-proof and fail-safe isolation. It maintained full pressurisation at 55bar in the initial use of RTP on the National Transmission System, which surpasses traditional methods like venting or recompression. The technology offered secure double blocking and monitored isolation, allowing safe and efficient maintenance activities, such as welding.

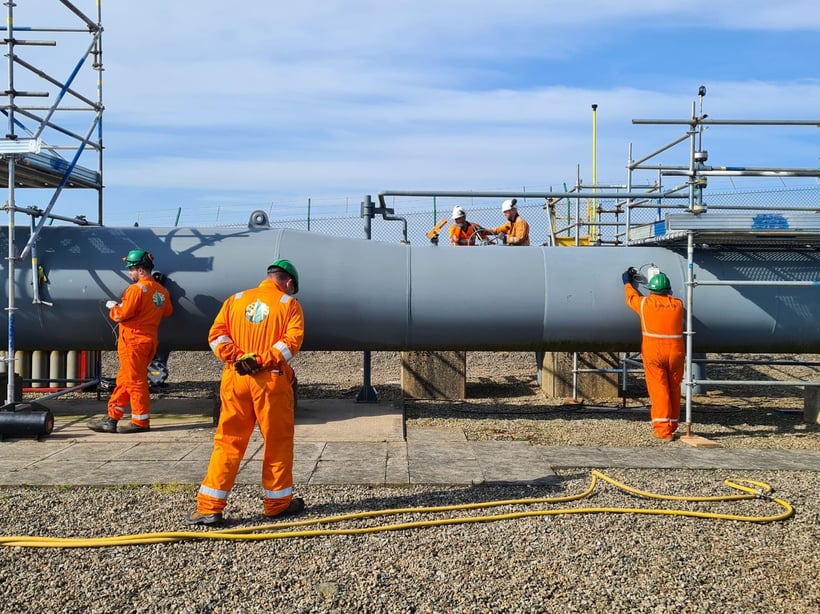

48in RTP Tracking, St Cyrus, Montrose

Remote Tecno Plug tracking and communication inside 48" National Transmission Pipeline.

In addition to operational phase tests, extensive integrity tests, independently evaluated by Specialist Engineering 3rd Parties DNV and Pipeline Integrity Engineers (PIE), were conducted to ensure the technology's reliability and safety. This work will allow for future projects to consider isolation tools in different applications.
